Dive into Sharepoint Caca: Create an on-premise high-trust provider-hosted app for Sharepoint 2013

Revised for RTM, March PU, August CU; Office Developer Tools RTW

This guide is divided into 3 main sections:

A.      Prerequisites

B.      Creating A High-Trust Provider-HostedApp

C.      Deploying provider-hosted app to IIS and to the Sharepoint App Catalog

A. Prerequisites

Follow this guide to prepare a development environment for Sharepoint 2013: http://msdn.microsoft.com/en-us/library/fp179923(v=office.15).aspx. The MSDN guide does not provide an accurate account of how the configurations should be performed. Where applicable, please follow the missing or existing failed procedures detailed in the above MSDN guide with the steps below.

A1. Configurations to allow remote computer access – required when the target SP2013 instance is on a remote computer

Creating an Alternate Access Mapping (AAM)

From Central Admin, navigate to System Settings -> Configure alternate access mappings. Click on the link “Edit Public URLs” to add a URL for Sharepoint server as follows (Fig 1) with its LAN IP (i.e. http://10.7.8.161) . Note that the IP address assigned to your target Sharepoint server may be different. Please change accordingly.

Figure 1

A2. Creating a new developer site

From Central Admin, navigate to Application Management -> Create Site Collection. Fill in the required fields as follows (Fig 2) and click OK to create a new site collection for the developer site. This will create a new developer site under /sites/dev.

Figure 2

A3. Create an isolated app domain on your development computer (machine running Sharepoint 2013)

From the target sharepoint computer, run the following PowerShell commands with the Sharepoint Management Shell.

A3-1. Create an App Domain

Start-Service SPAdminV4

Start-Service SPTimerV4

Set-SPAppDomain -AppDomain "SP2013.com"

A3-2. Running Shared Services Instances

Get-SPServiceInstance | Where-Object {$_.GetType().Name -eq "AppManagementServiceInstance" -or $_.GetType().Name -eq "SPSubscriptionSettingsServiceInstance"} | Start-SPServiceInstance

Get-SPServiceInstance | Where-Object {$_.GetType().Name -eq "AppManagementServiceInstance" -or $_.GetType().Name -eq "SPSubscriptionSettingsServiceInstance"}

A3-3. App-specific Shared Services Applications

(Use the following steps if the central admin wizard has been run)

$applicationPool = Get-SPServiceApplicationPool -Identity "SharePoint Web Services System"

$appSubscriptionService = New-SPSubscriptionSettingsServiceApplication -Name "Subscription Settings Service" -DatabaseName "SubscriptionSettingsServiceDB" -ApplicationPool $applicationPool

New-SPSubscriptionSettingsServiceApplicationProxy -ServiceApplication $appSubscriptionService

(Run the following commands if an App Management Service Proxy does not exist) – NOTE: to ensure an App Management Service and its proxy are running, from central admin, navigate to Application Management -> Manage service applications.

$appManagementService = Get-SPServiceApplication | where-object { $_.displayname -eq "App Management Service" }

New-SPAppManagementServiceApplicationProxy -Name "App Management Service Proxy" -ServiceApplication $appManagementService

(Use the following steps if the central admin wizard has not been run)

$account = New-SPManagedAccount

$account = Get-SPManagedAccount "domain\user"

$appPoolSubSvc = New-SPServiceApplicationPool -Name SettingsServiceAppPool -Account $account

$appPoolAppSvc = New-SPServiceApplicationPool -Name AppServiceAppPool -Account $account

$appSubSvc = New-SPSubscriptionSettingsServiceApplication –ApplicationPool $appPoolSubSvc –Name SettingsServiceApp –DatabaseName SettingsServiceDB

$proxySubSvc = New-SPSubscriptionSettingsServiceApplicationProxy –ServiceApplication $appSubSvc

$appAppSvc = New-SPAppManagementServiceApplication -ApplicationPool $appPoolAppSvc -Name AppServiceApp -DatabaseName AppServiceDB

$proxyAppSvc = New-SPAppManagementServiceApplicationProxy -ServiceApplication $appAppSvc

A3-4. App prefix

Set-SPAppSiteSubscriptionName -Name "app" -Confirm:$false

A4. Creating a new site collection for App Catalog

From Central Admin, navigate to Apps -> Manage App Catalog, choose “Create a new app catalog site”, and click OK.

Fill in the required fields on the “Create App Catalog” page as shown (Fig 3) and click OK to create an App Catalog site.

Figure 3

A5. Turn off the HTTPS requirement for OAuth during development

From the sharepoint management shell on the target sharepoint server, enter the following commands.

$serviceConfig = Get-SPSecurityTokenServiceConfig

$serviceConfig.AllowMetadataOverHttp = $true

$serviceConfig.AllowOAuthOverHttp = $true

$serviceConfig.Update()

B. Creating A High-Trust Provider-Hosted App

The following procedures are a supplement to the article found on MSDN page http://msdn.microsoft.com/en-us/library/fp179901(v=office.15).aspx. Where applicable, please refer to the procedures hereafter.

B1. Create a public and private test certificate

Open IIS Manager, navigate to the top computer node on the left pane, and on the right pane double-click on the Server Certificates icon. (Fig 4).

Figure 4

From the Server Certificate screen, choose the “Create Self-Signed Certificate…” link, Specify a unique name (Fig 5), and click OK.

Figure 5

Right-click the “HighTrustApp” certificate item from the list on the Server Certificate screen, choose Export. (Fig 6)

Figure 6

Choose a location to export the pfx file to and specify a password (Fig 7).

Figure 7

On Server Certificates screen, double-click HighTrustApp to display the certificate details.

Next, on the Details tab, choose Copy to File to launch the Certificate Export Wizard (Fig 8).

Figure 8

Choose Next.

Use the default value No, do not export the private key. and then choose Next.

Use the default values. Choose Next.

Choose Browse, name the certificate HighTrustApp, and then save it in a location of your choice. It is saved as a .cer file. Click the Finish button to complete exporting of the certificate.

B2. Configure SharePoint 2013 for server-to-server (S2S) app use and configure trust for your app

Save the following commands to a text file named RegisterTokenIssuer.ps1. Open Sharepoint Management Shell, navigate to where RegisterTokenIssuer.ps1 is saved (i.e. cd desktop), run the ps1 file by executing .\RegisterTokenIssuer.ps1 at the prompt.

$publicCertPath = "C:\HighTrustApp.cer"

$IssuerName = "TestApp"

$issuerId = [System.Guid]::NewGuid().ToString()

$spurl ="http://10.7.8.161/sites/dev"

$spweb = Get-SPWeb $spurl

$realm = Get-SPAuthenticationRealm -ServiceContext $spweb.Site

$certificate = Get-PfxCertificate $publicCertPath

New-SPTrustedRootAuthority -Name $IssuerName -Certificate $certificate

$fullIssuerIdentifier = $issuerId + '@' + $realm

$tokenIssuer = New-SPTrustedSecurityTokenIssuer -Name $issuerId -Certificate $certificate -RegisteredIssuerName $fullIssuerIdentifier –IsTrustBroker

$appPrincipal = Register-SPAppPrincipal -NameIdentifier $fullIssuerIdentifier -Site $spweb -DisplayName $IssuerName

Set-SPAppPrincipalPermission -appPrincipal $appPrincipal -Site $spweb -Right "READ" -Scope "Site"

write-host "--- ### Results ### ---" -ForegroundColor Green

write-host " Realm: $realm" -ForegroundColor Green

write-host " IssuerID: $issuerId" -ForegroundColor Green

write-host " TokenIssuer: $tokenIssuer" -ForegroundColor Green

write-host "--- ### Results ### ---" -ForegroundColor Green

Note the IssuerID from the console output, you will need this GUID value later for setting up the app.

NOTE:
- All references to GUID values (i.e. from powershell commandlets, web.config, appmanifest.xml) must be lowercase.

- If you're doing remote development where Visual Studio 2012 and SharePoint 2013 are not installed on the same computer, the root site collection must be created from a Developer Site template. It's required. If Visual Studio 2012 and SharePoint 2013 are installed on the same computer, it isn’t required.

If, for some reason, the above command executions did not succeed and you need to remove the root authority and the token issuer, execute the following command line by line to view the properties.

Get-SPTrustedRootAuthority | Where-Object {$_.DisplayName -eq "TestApp"}

Get-SPTrustedSecurityTokenIssuer

Note the GUID Id values for the Root Authority and Token Authority. Execute the following commands line by line. Replace the GUID value in the example with ones observed above.

Remove-SPTrustedRootAuthority -Identity "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"

Remove-SPTrustedSecurityTokenIssuer -Identity "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"

B3. Create a provider-hosted app

1. Open Visual Studio 2012. Using the top menu on the IDE, create a new project by choosing FILE -> New Project…

2. Select “App for SharePoint 2013” as shown in Fig 9, specify a project name, and click OK.

Figure 9

3. On the New App for Sharepoint dialog, fill in the fields as shown in Fig 10. Click the Validate button to ensure connectivity to the server. Click “Finish” when the dialog is complete.

Figure 10

4. Add a MVC project to the solution. As an example, we are going to download a sample MVC project and extract the files and folder to the solution folder as shown in Fig 11.

Figure 11. Sample project available at https://docs.google.com/open?id=0B62C-JrEu51lSF9YT0xXaXVHN0U

5. Right-click the solution node from the Solution Explorer and select Add -> Existing Project…, browse to the BasicMVC.csproj located in the project folder to add the project to the solution.

6. Select the TestApp project node from the Solution Explorer to show its properties below the solution Explorer. Change the Web Project property to BasicMVC as shown in Fig 12.

Figure 12

7. Copy the TokenHelper.cs from the TestAppWeb project to the root of BasicMVC project as show in Fig 13. Change the namespace in TokenHelper.cs to BasicMVC as shown in Fig 14.

Figure 13

Figure 14

8. Right-click on the TestAppWeb project and choose Remove to remove it from the solution.

9. Add the following assemblies as references to the BasicMVC project.

Assembly Name	Path
Microsoft.IdentityModel	C:\Program Files\Reference Assemblies\Microsoft\Windows Identity Foundation\v3.5\Microsoft.IdentityModel.dll
Microsoft.IdentityModel.Extensions	C:\Windows\Microsoft.NET\assembly\GAC_MSIL\Microsoft.IdentityModel.Extensions\v4.0_2.0.0.0__69c3241e6f0468ca\Microsoft.IdentityModel.Extensions.dll
Microsoft.SharePoint.Client	C:\Windows\Microsoft.NET\assembly\GAC_MSIL\Microsoft.SharePoint.Client\v4.0_15.0.0.0__71e9bce111e9429c\Microsoft.SharePoint.Client.dll
Microsoft.SharePoint.Client.Runtime	C:\Windows\Microsoft.NET\assembly\GAC_MSIL\Microsoft.SharePoint.Client.Runtime\v4.0_15.0.0.0__71e9bce111e9429c\Microsoft.SharePoint.Client.Runtime.dll
System.IdentityModel	C:\Program Files (x86)\Reference Assemblies\Microsoft\Framework\.NETFramework\v4.5\System.IdentityModel.dll
System.ServiceModel	C:\Program Files (x86)\Reference Assemblies\Microsoft\Framework\.NETFramework\v4.5\System.ServiceModel.dll

10. Right-click on the BasicMVC project node from the Solution Explorer, choose Properties, and make changes to the following properties.

From Web tab -> Start Action section, change the radio button seletion to “Don’t open a page. Wait for a request from an external application” as shown in Fig 15.

Figure 15

11. Select the BasicMVC project node from the Solution Explorer, under the Properties window, change Anonymous Authentication to Disabled, and Windows Authentication to Enabled, as shown in Fig 16.

Figure 16

12. Modify the AppManifest.xml file from the TestApp project as shown in the highlighted areas.

<?xml version="1.0" encoding="utf-8" ?>

<App xmlns="http://schemas.microsoft.com/sharepoint/2012/app/manifest"

Name="TestApp"

ProductID="{6cf090bb-6ed9-4954-b2fc-b012e3f767f6}"

Version="1.0.0.0"

SharePointMinVersion="15.0.0.0">

<Title>TestApp</Title>

<StartPage>~remoteAppUrl/Home?{StandardTokens}</StartPage>

</Properties>

</AppPrincipal>

</AppPermissionRequests>

</App>

13. Modify the web.config file from the BasicMVC project as shown in the highlighted areas. Add new elements to the appSettings node. Modify the authentication node and add customErrors node as shown. Note the IssuerID in the appSettings section. This is a GUID value generated previously when a Token Issuer is registered.

<?xml version="1.0"?>

...

...

</appSettings>

...

<system.web>

...

</namespaces>

</pages>

...

</system.web>

...

<system.serviceModel>

</binding>

</basicHttpBinding>

</bindings>

</protocolMapping>

</system.serviceModel>

</configuration>

14. Run the project from Visual Studio 2012. This will connect to the remote Sharepoint server and install the app on the Sharepoint instance. Use SP2013\administrator when prompted for a credential.

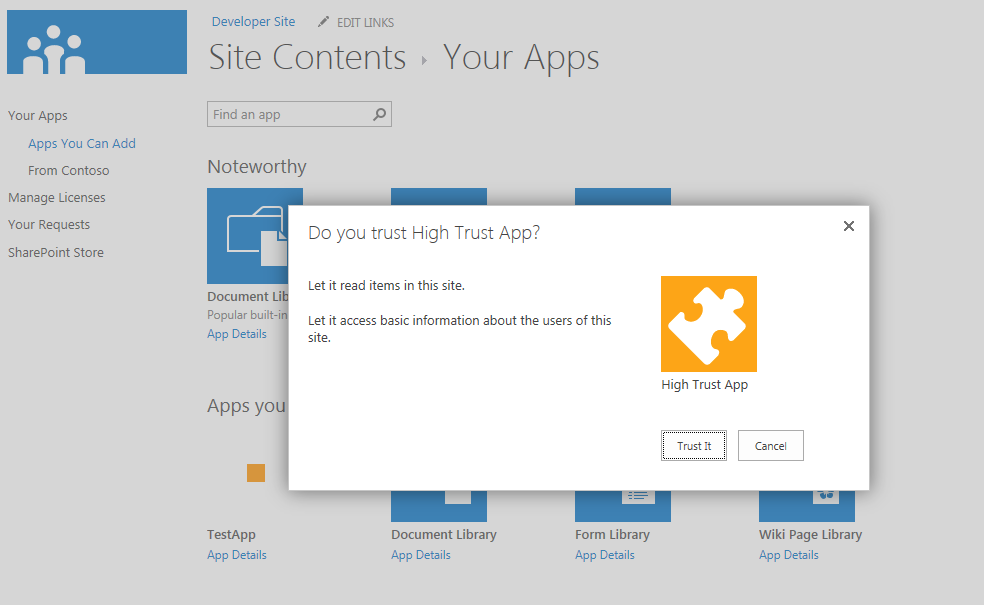

15. When the browser launches, a screen appears asking to trust the app (Fig 17). Click Trust It. This will redirect to the Site Settings page of /sites/dev/. Click on the Site Contents link on the left pane. An icon for the app just installed will have appeared on the Site Contents page (Fig 18). Click on the app icon link to launch the app. Note that once the app launches, it will run as a localhost site hosted on IISExpress of Visual Studio 2012.

Figure 17

Figure 18

C. Deploying provider-hosted app to IIS and to the Sharepoint App Catalog

C1. Generate App secret and register new app on sharepoint

1. On the browser, navigate to http://10.7.8.161/_layouts/15/appregnew.aspx (Fig. 19)

2. Fill out the App Id field with the ClientId from the appSettings section of the web.config file for the BasicMVC project.

3. Using the Generate button beside the Client Secret field, generate a new client secret value, which will be used later in the web.config of the app.

4. Fill out the remaining fields as shown on Fig 19, and click the Create button.

Figure 19

C2. Publish the app to be deployed to target Sharepoint instance

1. Modify the AppManifest.xml file from the TestApp project as shown in the highlighted areas.

<?xml version="1.0" encoding="utf-8" ?>

<App xmlns="http://schemas.microsoft.com/sharepoint/2012/app/manifest"

Name="TestApp"

ProductID="{6cf090bb-6ed9-4954-b2fc-b012e3f767f6}"

Version="1.0.0.0"

SharePointMinVersion="15.0.0.0">

<Title>TestApp</Title>

<StartPage>http://10.7.8.161:2220/Home?{StandardTokens}</StartPage>

</Properties>

</AppPrincipal>

</AppPermissionRequests>

</App>

2. Modify the web.config file from the from the BasicMVC project as shown in the highlighted areas. Add a new element to the appSettings node for ClientSecret.

<?xml version="1.0"?>

...

</appSettings>

...

</configuration>

3. Right-click the TestApp project node from the Solution Explorer and choose “Publish…”. Type in a profile name “HighTrustApp”, click Next.

4. Type in a URL for the website host, and Client ID as shown in Fig 20. Note that the URL textbox shown only allows https as prefix. This will not affect the resulting app code being built. Click Next to go to the next screen. Ensure that the “Open output folder after successful packaging” option is checked and click Finish to build and package the app code (Fig 21). The bin\Debug\app.publish folder will open to shown the built packaged files.

Figure 20

Figure 21

C3. Configure Windows Firewall to allow inbound TCP traffic

1. The use of an assigned port for this test app necessitates the creation of an inbound traffic rule in the Windows firewall settings from the target Sharepoint server computer to allow TCP traffic through port 2220 . From the target Sharepoint server computer, navigate to Start menu -> All Programs -> Administrative Tools -> Windows Firewall with Advanced Security. Once the applet opens, right-click on the Inbound Rules node on the left pane and choose “New Rule…” (Fig 22)

Figure 22

2. On the New Inbound Rule Wizard’s Rule Type screen, Select “Port” and click Next.

3. On the Protocol and Ports screen, select TCP for the rule, and Specify local ports 2220 in the textbox.

4. On the Action screen, ensure that “Allow the connection” is selected. Click Next.

5. On the Profile screen, leave the default options checked and click Next.

6. On the Name screen, type in “Inbound port 2220” for the Name field, and click “Finish”.

C4. Create an IIS Web Site and configure its security settings

1. From the target Sharepoint server computer, navigate to Start menu -> All Programs -> Administrative Tools -> Internet Information Services (IIS) Manager to open the IIS Manager.

2. On the left pane of IIS Manager window, expand the top level computer node, and expand the Sites node. Right-click on the Sites node and choose “Add Web Site…” (Fig 23).

Figure 23

3. Fill in the fields as shown in Fig 24. Create a physical folder if necessary. Click OK to create the web site.

Figure 24

4. Right-click on the TestApp and choose “Edit Permissions…” as shown in Fig 25.

Figure 25

5. From the TestApp Properties window (Fig 26), navigate to the Security tab. Ensure that the NETWORK SERVICE (Full Control) and IIS_IUSRS (read/execute default permissions) users are added to the “Group or user names” list. Use the “Edit…” button to add the users if necessary.

Figure 26

6. From IIS Manager, double-click on the TestApp node from the left Connections pane. Click on the Authentication button from the Features View (Fig 27). Ensure that Anonymous authentication is disabled and Windows Authentication is enabled (Fig 28).

Figure 27

Figure 28

7. From the bin\Debug\app.publish folder that was open previously, extract the file content from the following path in the TestApp.Web.zip file to the virtual folder of the TestApp web site (c:\Apps\TestApp) on the Target sharepoint computer.

Content\C_C\TestProjects\TestApp\BasicMVC\obj\Debug\Package\PackageTmp

8. Navigate to the web.config file on the virtual folder of TestApp. Ensure the following highlighted appSetting values are in place.

<?xml version="1.0"?>

...

</appSettings>

...

9. Test the TestApp web site by browsing to http://10.7.8.161:2220 to ensure it runs on its own.

C5. Add App to App Catalog and to target site on Sharepoint

1. Remove the existing TestApp on the Site Contents page from http://10.7.8.161/sites/dev (Fig 29).

Figure 29

NOTE: if removing the app is unsuccessful, close the browser and log in as SP2013\administrator.

2. Browse to the App Catalog created previously at http://10.7.8.161/sites/apps. On the left pane, click “Apps for Sharepoint”.

3. From the App for Sharepoint screen, click “new app” (Fig 30).

Figure 30

NOTE: if you cannot see the “new app” link button, close the browser and log in as SP2013\sp_farm.

4. From the Add a document dialog box, browse to bin\Debug\app.publish folder from the TestApp project folder, and browse to the TestApp.app file as shown in Fig 31. Ensure that the “Add as a new version to existing files” option is checked, and click OK.

Figure 31

5. When the App for Sharepoint – TestApp.app screen appears, accept the default entries by clicking the “Save” (Fig 32).

Figure 32

6. Navigate to http://10.7.8.161/sites/dev -> Site Contents. Click the “add an app” icon (Fig 33).

Figure 33

7. From the Site Contents -> Your Apps screen, click TestApp icon shown, and click the Trust It button from the popup box (Fig 34).

Figure 34

NOTE: if sharepoint throws an error after adding the app, close the browser and log back in as SP2013\administrator.

8. The app will now be added to the Site Contents page. Click on the TestApp icon to launch the app.

8 comments:

UnknownMay 24, 2014 at 4:17 AM
My app returned error: (401) Unauthorized after clicked "Trust it" and it show that error page. What I have to do to solve this? Thank's in Advance
UnknownFebruary 25, 2015 at 6:35 AM
Gud one bro.but i cannot able to find Microsoft.Identitymodel.extension in the path you mentioned.I am using win7 and visual studio 2012 trying to deploy in office 365

Thanks,
Gans
Rashesh JagadAugust 19, 2015 at 3:04 AM
I am getting below error can you please guide me:

Mixed Content: The page at 'https://localhost:44300/Pages/Default.aspx?SPHostUrl=http%3A%2F%2Finhydsp20…D02513030647b1b%2Esp2013TP01app%2Ecom%2Fsites%2FAppDev%2FJSOMCRUDOnPremise' was loaded over HTTPS, but requested an insecure script 'http://inhydsp2013tp01/sites/AppDev/_layouts/15/sp.runtime.js?_=1439967788585'. This request has been blocked; the content must be served over HTTPS.
UnknownMay 23, 2016 at 2:11 AM
Wow, fantastic blоg layout! How long have you been blоgging foг?
you madе blogging lοοk eaѕy.
The οvеrall lоok οf уour website іs
great..
sharepoint solution providers

New comments are not allowed.

Tuesday, October 8, 2013

Create an on-premise high-trust provider-hosted app for Sharepoint 2013

8 comments:
